Rotork
Local Hand Station
Q

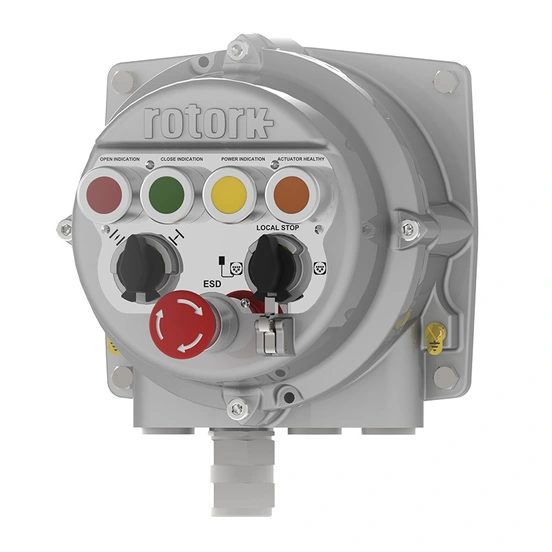

The Local Hand Station is an actuator control panel. It provides a fully enclosed control panel which can control actuators and other field devices in hazardous or inaccessible locations. It is certified for use in ATEX and IECEx hazardous areas, so it is flexible and reliable.
This actuator control panel ensures safe and reliable local operation, which is critical to the ongoing efficiency, safety and maintenance of a site. It provides a simple control panel interface between the actuator or field device and the DCS, offering complete local override of DCS control signals to ensure localised maintenance activities can be performed safely without unexpected operation occurring.
Features
Features:
Compact and robust design
Approved for use in ATEX and IECEx hazardous areas
Suitable for mounting on a pole or wall
Rotary selector switches provide increased resistance to sticking or jamming
Local/Stop/Remote selector is lockable in any position
Emergency Shutdown button
Installation using standard electrical cable with no need for supplementary power supplies
Temperature range: -20 to +70° C
(-4 to +158° F)
IP68 rated
Features
Features
Features:
Compact and robust design
Approved for use in ATEX and IECEx hazardous areas
Suitable for mounting on a pole or wall
Rotary selector switches provide increased resistance to sticking or jamming
Local/Stop/Remote selector is lockable in any position
Emergency Shutdown button
Installation using standard electrical cable with no need for supplementary power supplies
Temperature range: -20 to +70° C
(-4 to +158° F)
IP68 rated
Downloads
Product Brochures
Local Hand Station sales flyer - English (pdf)
Manuals
Local Hand Station Installation and Maintenance Manual - English (pdf)
Drawings/Dimensions Data
Local Hand Station 3D Solid Model Drawings for CAD (x_t)
Local Hand Station 3D Solid Model Drawings for CAD (igs)
Local Hand Station 3D Solid Model Drawings for CAD (stp)
Local Hand Station 3D Solid Model Drawings for CAD (sat)
Local Hand Station Dimensional Drawings (dxf)
Local Hand Station Dimensional Drawings (pdf)
Certificates
Local Hand Station ATEX Certificate - English (pdf)
Local Hand Station PESO Certificate - English (pdf)
Local Hand Station IECEx Certificate - English (pdf)
