CKC - Centronik isolating duty

CK Range

CKC isolating duty, modular design electric actuators are designed for on / off valve types that are infrequently operated. They are equipped with the intelligent Centronik controls for functionally sophisticated applications and integration with all types of site control systems.

Features

• CKC isolating duty actuators (Class A and B) with the intelligent Centronik control module

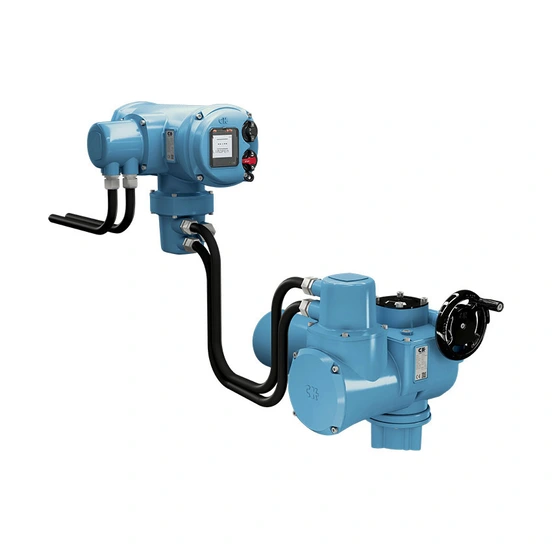

• Centronik module can be close coupled or remote mounted up to 100 m from actuator
• Microprocessor-based controls for functionally sophisticated applications and/or for integration of actuators into fieldbus systems
• Remotely mounted Centronik module option facilitates use in harsh environments or restricted space installations
• Non-intrusive setting of Centronik module via local control knobs, infrared or optional Bluetooth® wireless communication
• Intelligent integral controls for integration with all types of site control system
• Multilingual user interface
• Fully configurable LCD display
• Optional analogue control input and Current Position Transmitter (CPT) 0-20 and 4-20 mA
• Optional Current Torque Transmitter (CTT) 0-20 and 4-20 mA with Digital Switch Mechanism (DSM) only
• Constant valve position monitoring with DSM even during power loss
• Double-sealed enclosure to IP68

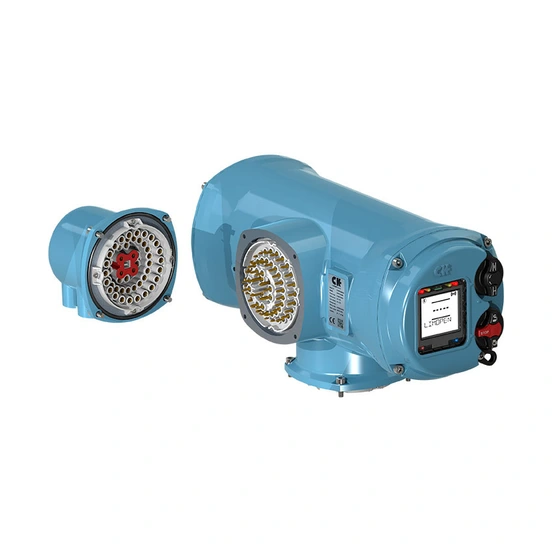

• Fast and efficient maintenance due to plug and socket connections
• Torque measurement and independently adjustable torque limiting for both open and close control
• Network bus connectivity
• Datalogging and analysis with Insight 2 software
