Fairchild
TXI7800
FAIRCHILD - Transducers

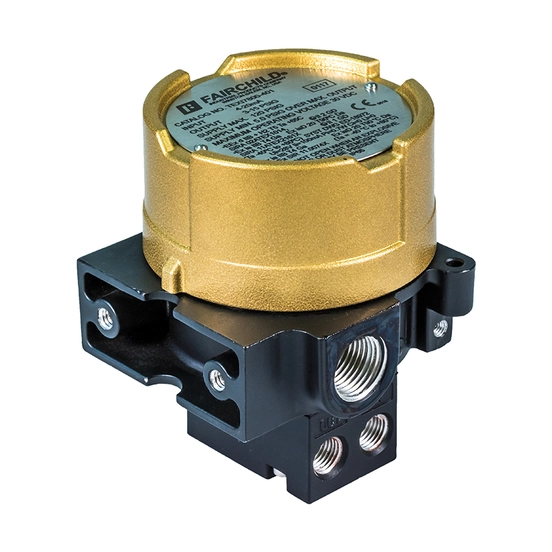

Designed for use in hazardous environments, the Rotork Fairchild TXI7800 series product is an explosionproof I/P pressure transducer. It operates under the same principles as the T7800 product; however the TXI series includes NEMA 4X explosionproof construction. Our design isolates the electronics chamber from the pneumatic section, thereby creating a safer and longer service life product, especially for applications handling natural gas.
Features
• In the Extended Range units, the TXI7800 series will also deliver up to 0-120 psi [0-8.0 BAR], (0-800 kPa) output
• 18 available output ranges - tremendous versatility for application design
• Accuracy as low as 0.15% - high precision reliable operation
• Field selectable outputs in three pressure ranges - easily matches final control element requirements
• Field reversible feature provides output directly or inversely proportional to input signal
• Does not contain copper-based metals -designed for use with natural gas and corrosive media
• Optional version approved for use with natural gas or industrial methane supply media
• Explosionproof NEMA 4X, IP65, Type 4 enclosure - allows for outdoor and indoor installations
• FM, CSA, ATEX and IECEx approvals - carries global approval for intrinsic safety and hazardous location operation
• Canadian registration numbers (CRN) certifications - may be used in all territories and provinces
• 18 available output ranges - tremendous versatility for application design
• Accuracy as low as 0.15% - high precision reliable operation
• Field selectable outputs in three pressure ranges - easily matches final control element requirements
• Field reversible feature provides output directly or inversely proportional to input signal
• Does not contain copper-based metals -designed for use with natural gas and corrosive media
• Optional version approved for use with natural gas or industrial methane supply media
• Explosionproof NEMA 4X, IP65, Type 4 enclosure - allows for outdoor and indoor installations
• FM, CSA, ATEX and IECEx approvals - carries global approval for intrinsic safety and hazardous location operation
• Canadian registration numbers (CRN) certifications - may be used in all territories and provinces
