Fairchild
HPD
FAIRCHILD - Pressure Regulators

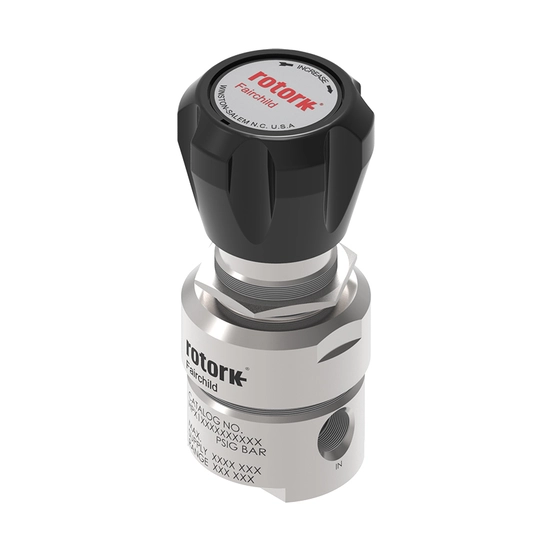

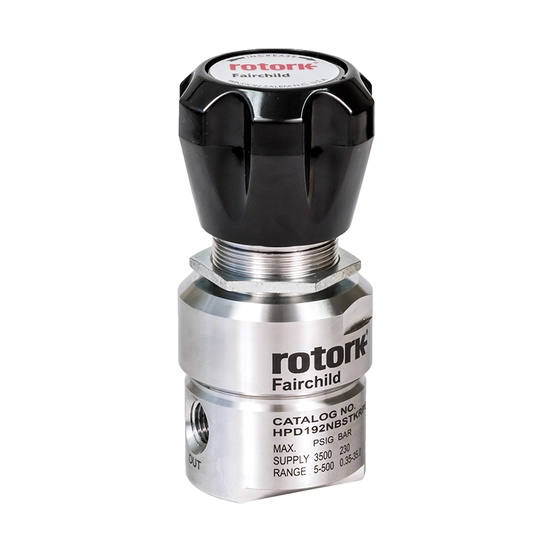

The Rotork Fairchild HPD is a High Pressure Regulator designed for applications that have high supply pressures and require a much lower output pressure. It is constructed of rugged 316L Stainless Steel for corrosion resistance and durability. The HPD is available in a 2 or 4 port configuration.
Features
• Standard X-750 inconel diaphragm
• Three seat material choices (PEEK, CTFE, Vespel)
• Tamper proof option
• Five output pressure ranges from 0-25 psi, 0-1.7 BAR, 0-170 kPa, up to 5-500 psi, 0.35-35 BAR, 35-3500 kPa
• Supply valve Cv of 0.06
• Panel mounting option
• Allows for more through put of gas
• Helps to prevent corrosion and is compatible with most gases
• Offers a variety of choices for compatibility and temperature ranges
• New patented valve and valve seat to prevent leakage
