Fairchild
M10
FAIRCHILD - Pressure Regulators

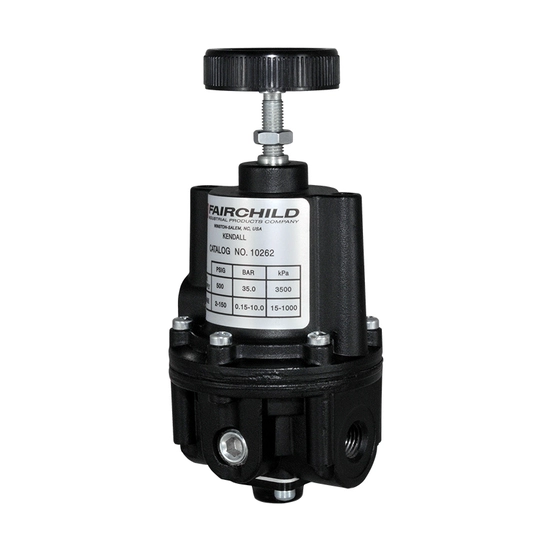

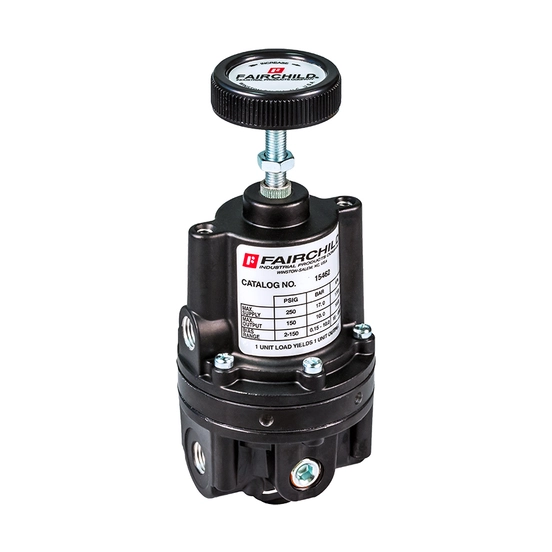

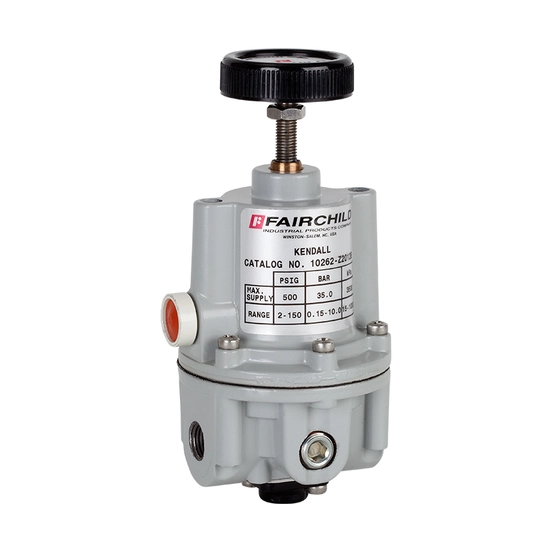

Rotork Fairchild Model 10 is a precision pressure regulator designed for applications that require high performance and accurate process control. Stability of regulated pressure is maintained under varying flow conditions through the use of an aspirator tube which adjusts the supply valve in accordance with the flow velocity.
Features
• High control sensitivity of 1/8" water column - highest accuracy pressure regulator available
• Pressure balanced supply valve prevents supply pressure changes from affecting the setpoint
• Separate control chamber isolates diaphragm from flow to eliminate hunting and buzzing
• Aspirator tube design compensates downstream pressure drop under flow conditions
• 9 output pressure ranges from 0-2 psi, 0-0.15 BAR, 0-15 kPa, up to 5-400 psi, 0.3-28 BAR, 35-2800 kPa - select the range best suited for your application
• 40 SCFM, 68 m3/hr flow capacity
• Check valve option permits backflow of downstream pressure
• No yellow metals option facilitates the handling of harsh media
• Typical Part Numbers are 10212, 10222, 10232, 10242, 10252, 10262, 10272, 10282, 10292, 10233, 10243, 10253, 10263, 10273, 10283, 10293
