Schischek
RedMax
Max

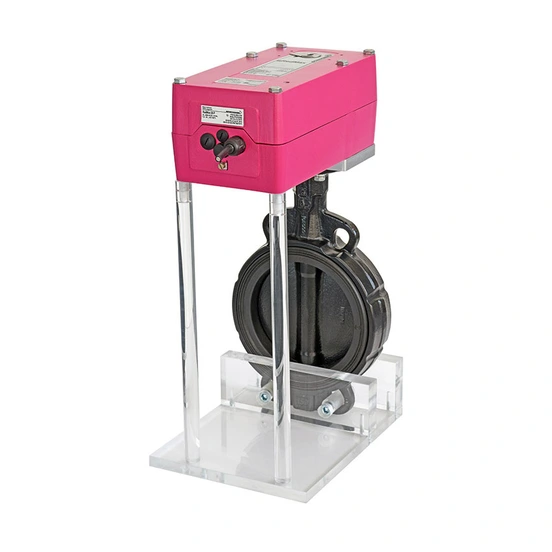

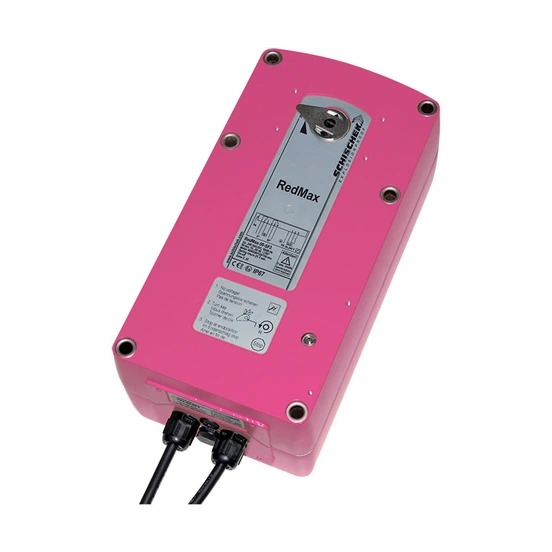

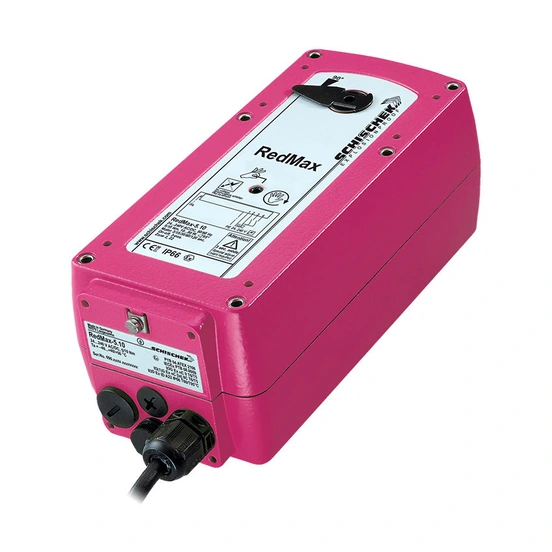

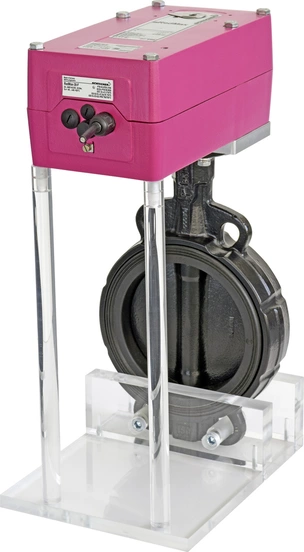

Schischek RedMax explosionproof part-turn actuators for use in Zone 2, 22. Gas + Dust certified. Compact and robust, with enclosure material, offshore/marine coating and failsafe options. For automation of air dampers, fire and smoke dampers, volume control, ball valves, throttle valves and other quarter-turn armatures.
Features
• Part-turn output drive
• On/off duty as standard
• 24 - 240 VAC/VDC universal power supply
• Standard ISO flanges available
• Explosionproof to international standards in Zone 2, 22
• Spring-return fail-safe option
• Ingress protection IP66/67
• Robust aluminium housing
• UL and CSA certified variants available
• Small dimension, compact, easy installation, highest protection classes, cost-effective
• Up to 5 different running times adjustable on-site
• 95° angle of rotation (5° pretension)
• 100% overload protected
• Emergency manual override
• Auto setup and selectable speeds
• Mechanical position indication
• Optional stainless steel enclosure
• Optional offshore/marine coating
• On/off duty as standard
• 24 - 240 VAC/VDC universal power supply
• Standard ISO flanges available
• Explosionproof to international standards in Zone 2, 22
• Spring-return fail-safe option
• Ingress protection IP66/67
• Robust aluminium housing
• UL and CSA certified variants available
• Small dimension, compact, easy installation, highest protection classes, cost-effective
• Up to 5 different running times adjustable on-site
• 95° angle of rotation (5° pretension)
• 100% overload protected
• Emergency manual override
• Auto setup and selectable speeds
• Mechanical position indication
• Optional stainless steel enclosure
• Optional offshore/marine coating
