242 Gearbox - Manual Part Turn Gearbox

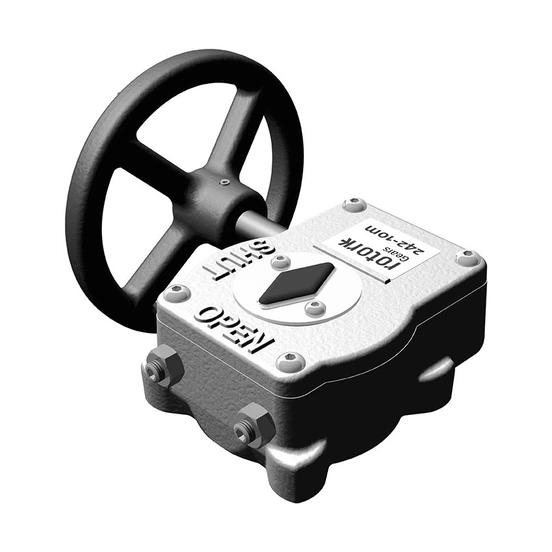

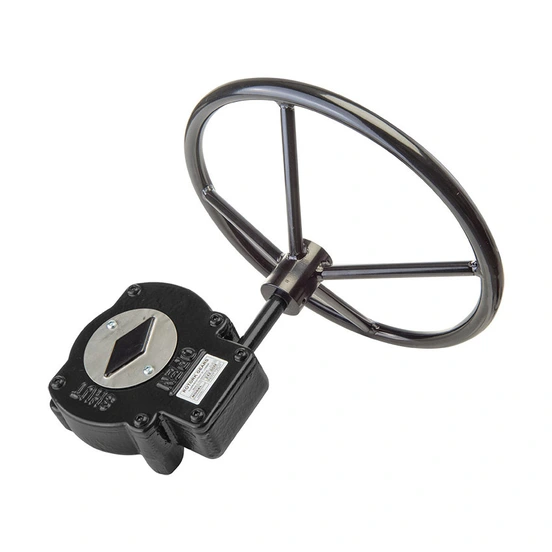

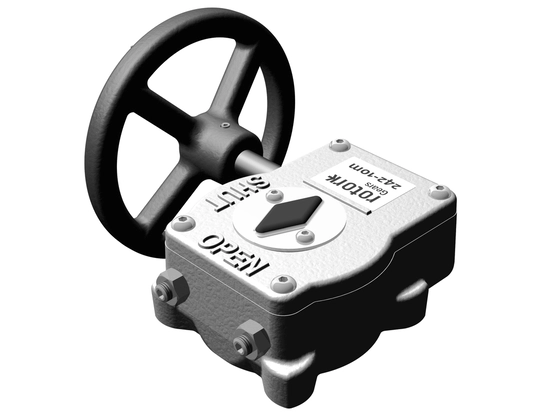

242 Gearbox - Manual Part Turn Gearbox black photo

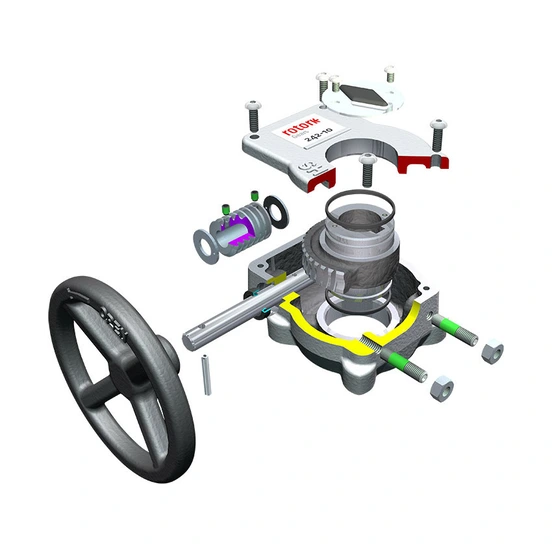

242 Gearbox - Manual Part Turn Gearbox Exploded View

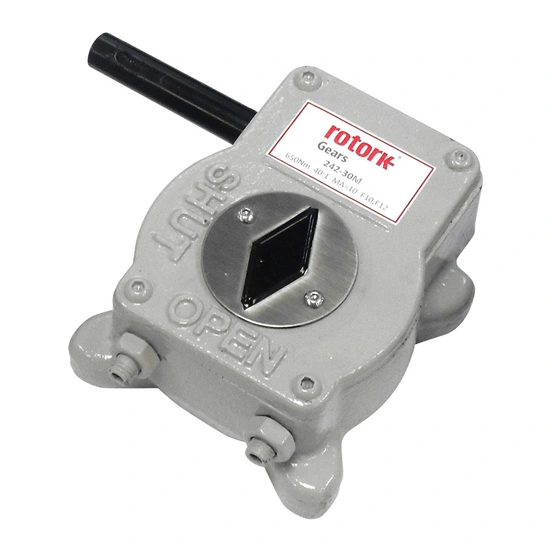

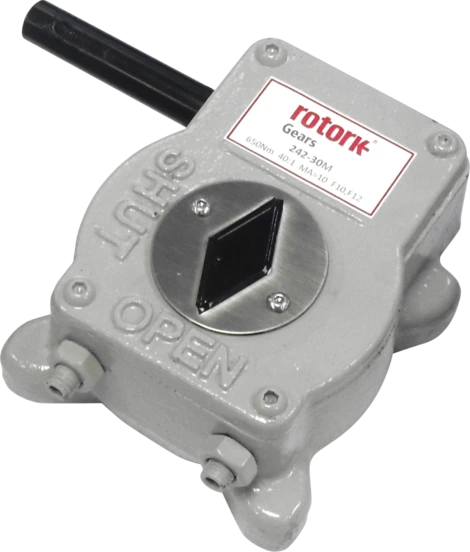

242 Gearbox - Manual Part Turn Gearbox grey photo

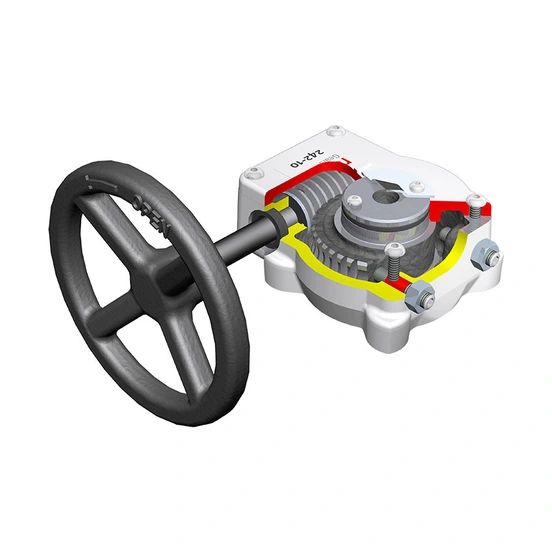

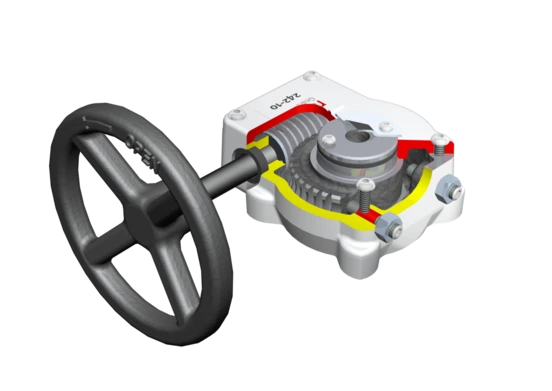

242 Gearbox - Manual Part Turn Gearbox Cutaway

Rotork

242

242

The 242 range has been designed to optimise robustness and durability, whilst minimising non-structural mass and reducing the overall gearbox envelope by using the latest lean engineering principles and analytical design tools. The 242 series is based on the design and quality of the FB series which was designed to meet strict specifications. The 242’s simple, rugged construction makes it the gearbox of choice for low torque manual applications.

Contact Us

Features
• Cast handwheels (on smaller sizes)
• PTFE thrust washers
• Cast iron housing
• Ductile iron quadrant
• Stroke 0-90° (±5° adjustable at open and closed)
• Pre-applied silicon seal on stop bolts
• Special protection of the input shaft
• Stainless steel position indicator
• Zinc plated fasteners
Features
Features
• Cast handwheels (on smaller sizes)
• PTFE thrust washers
• Cast iron housing
• Ductile iron quadrant
• Stroke 0-90° (±5° adjustable at open and closed)
• Pre-applied silicon seal on stop bolts
• Special protection of the input shaft
• Stainless steel position indicator
• Zinc plated fasteners
Downloads
Product Brochures
PUB105-001 - 242P Manual Gearbox - Nuclear (Legacy) - English (pdf)
PUB099-002 - 242 Quarter-turn manual gearbox brochure - Imperial - English (pdf)
PUB099-001 - 242 Quarter-turn manual gearbox brochure - Metric - English (pdf)
Drawings/Dimensions Data
