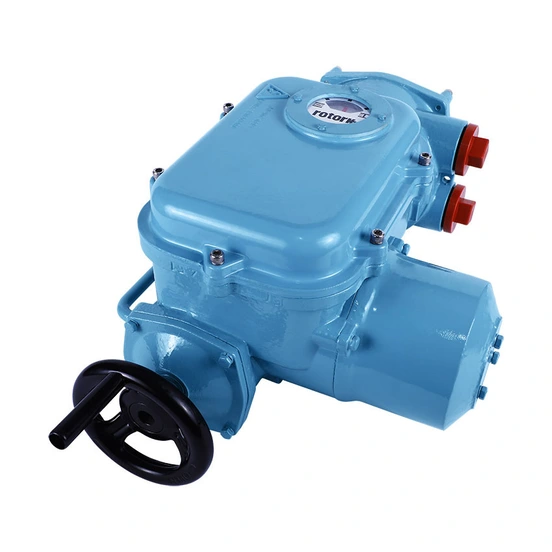

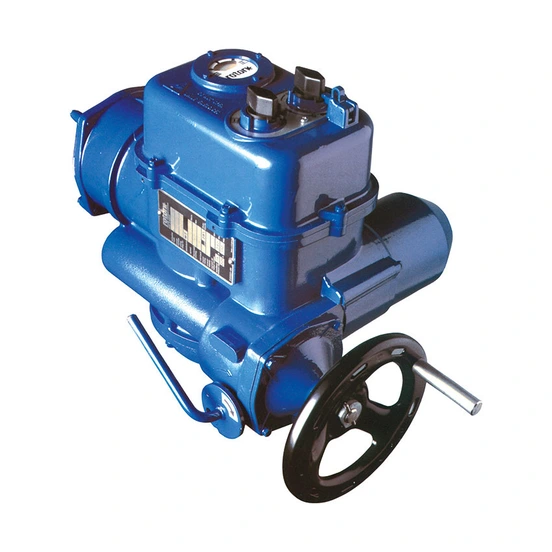

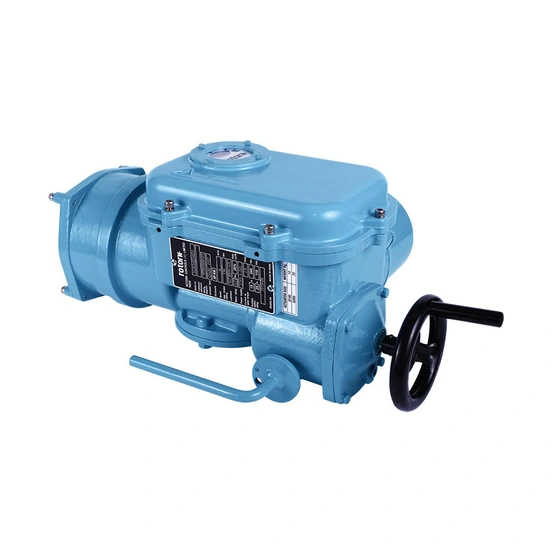

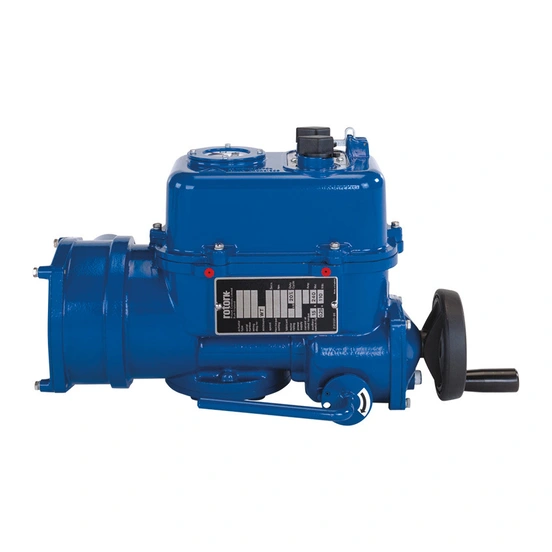

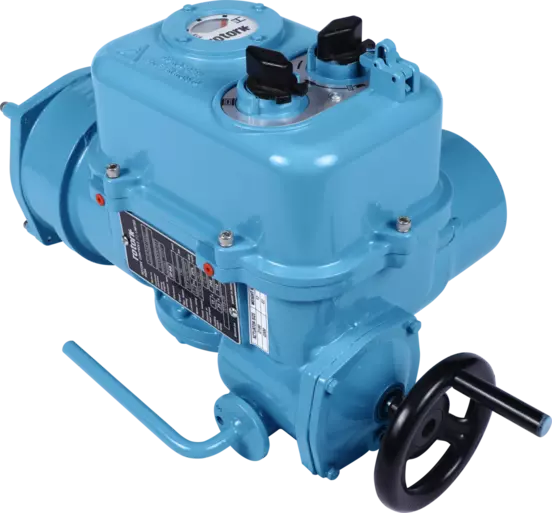

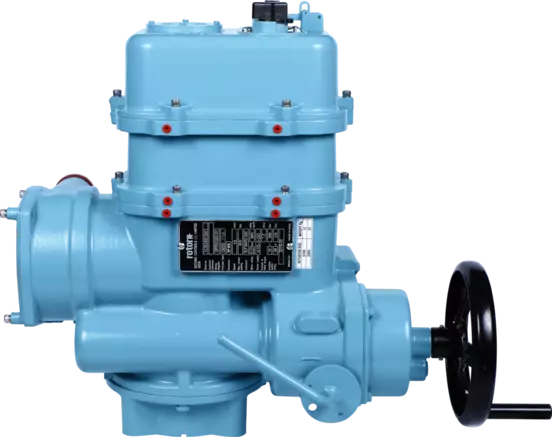

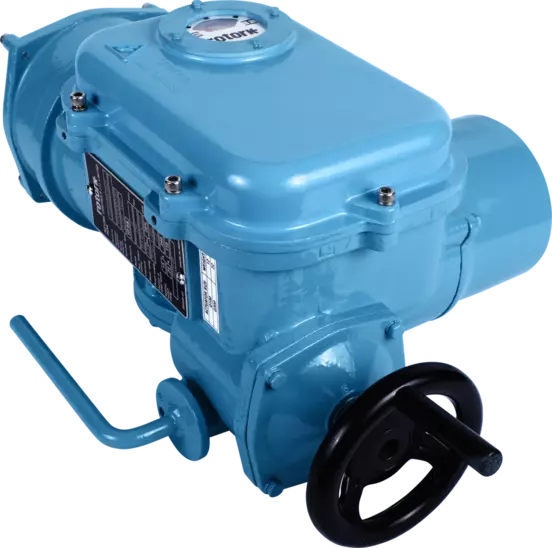

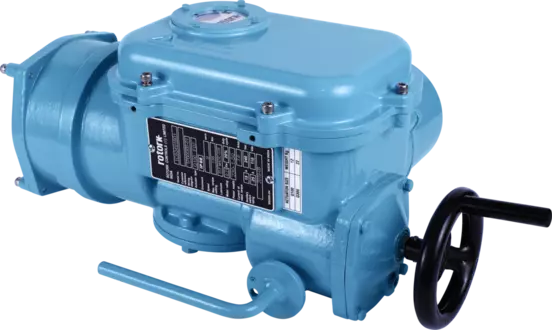

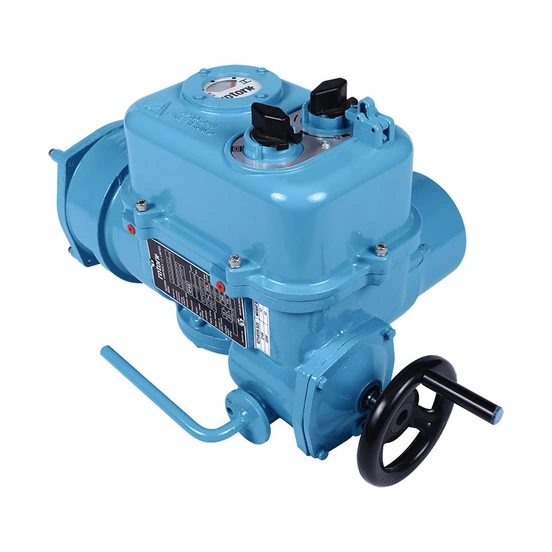

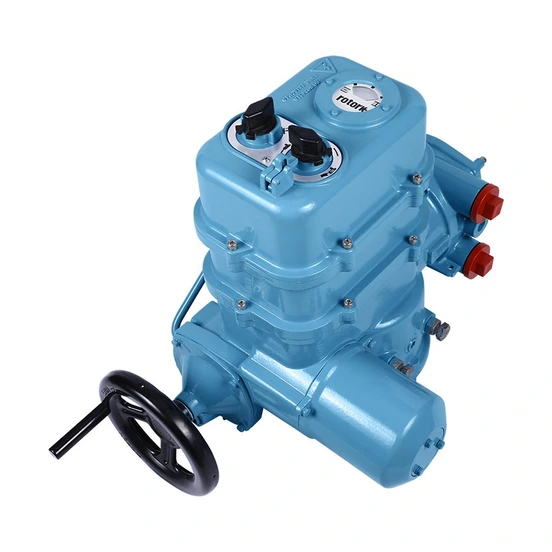

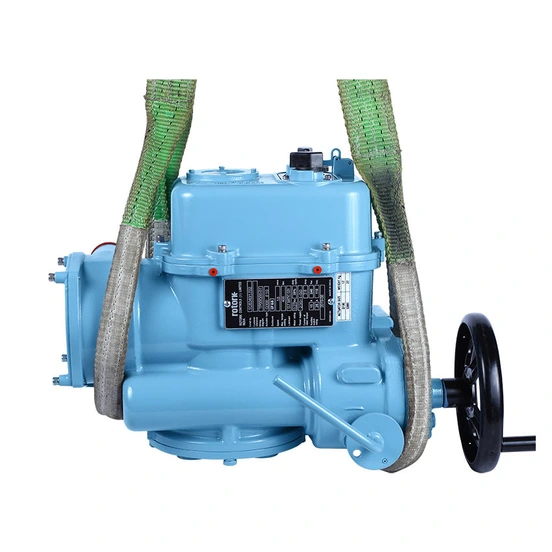

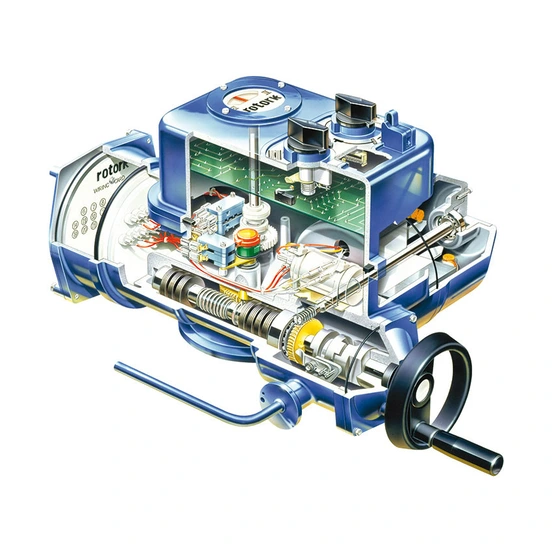

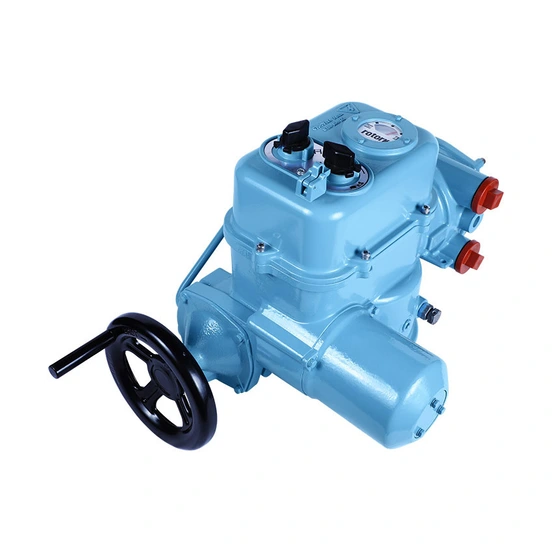

Q range robust, reliable and compact part-turn actuator with the flexibility to suit your application. Q Standard actuators are designed for use with external controls and motor switchgear. Q Pak actuators add a control interface module housing local control selectors, logic PCB, motor switchgear and transformer.
Features
• Continuous position indication at all times, even without power
• Water ingress protection – double-sealed to IP68 1.2 m for 48 hours
• Torque available from 40 to 900 Nm (30 to 664 lbf.in)
• 1-phase and 3-phase options (model dependent)
• Self-locking drive train in electrical and manual modes to prevent valve back driving
• Increased protection by using independent torque and position sensing
• Oil bath lubrication provides extended life and the ability to mount in any orientation
• Water ingress protection – double-sealed to IP68 1.2 m for 48 hours
• Torque available from 40 to 900 Nm (30 to 664 lbf.in)
• 1-phase and 3-phase options (model dependent)
• Self-locking drive train in electrical and manual modes to prevent valve back driving
• Increased protection by using independent torque and position sensing
• Oil bath lubrication provides extended life and the ability to mount in any orientation
Features
Features
• Continuous position indication at all times, even without power
• Water ingress protection – double-sealed to IP68 1.2 m for 48 hours
• Torque available from 40 to 900 Nm (30 to 664 lbf.in)
• 1-phase and 3-phase options (model dependent)
• Self-locking drive train in electrical and manual modes to prevent valve back driving
• Increased protection by using independent torque and position sensing
• Oil bath lubrication provides extended life and the ability to mount in any orientation
• Water ingress protection – double-sealed to IP68 1.2 m for 48 hours
• Torque available from 40 to 900 Nm (30 to 664 lbf.in)
• 1-phase and 3-phase options (model dependent)
• Self-locking drive train in electrical and manual modes to prevent valve back driving
• Increased protection by using independent torque and position sensing
• Oil bath lubrication provides extended life and the ability to mount in any orientation
Downloads
Product Brochures
Q Range Sales Brochure (India Only) - English (pdf)
Q Range Sales Brochure - English (pdf)
Manuals
Q Range safe use installation and maintenance manual - Japanese (pdf)
ROM Installation and Maintenance Manual - French (pdf)
Drawings/Dimensions Data
Q Range - Q100 and Q300 1-phase 3D Solid model drawings for CAD systems (zip)
Q Range - Q100 and Q300 1-phase 3D Solid model drawings for CAD systems (zip)
Q Range - Q100 and Q300 1-phase 3D Solid model drawings for CAD systems (zip)
Q Range - Q100 and Q300 1-phase 3D Solid model drawings for CAD systems (zip)
Q Range - Q100 and Q300 1-phase 3D Solid model drawings for CAD systems (zip)
Q Range Control & Monitoring Facilities (pdf)
Q100 / 450 3-Phase Actuators Data (pdf)
Q100 / 450 3-Phase Actuators Data (dxf)
Q100 1-Phase Actuators Data (pdf)
Q100 1-Phase Actuators Data (zip)
Q100 1-Phase Actuators Data (dxf)
Q100 1-Phase Actuators Data (zip)
Q100 3-phase 3D Solid model drawings for CAD systems (stp)
Q100 3-Phase Actuators Data (dxf)
Q100 3-Phase Actuators Data (pdf)
Q300 1-Phase Actuators Data (zip)
Q300 1-Phase Actuators Data (zip)
Q300 3-phase 3D Solid model drawings for CAD systems (stp)
Q450 3-phase 3D Solid model drawings for CAD systems (stp)
Q650 3-phase 3D Solid model drawings for CAD systems (stp)
Q650 3-Phase Actuators Data (pdf)
Q650 3-Phase Actuators Data (dxf)
Certificates
Q650 IP68 Certificate - English (pdf)
Q Range CB Certificate - English (pdf)
Q Range CE Declaration of Conformity and Incorporation - English (pdf)
Q100 IP68 Certificate - English (pdf)
Q Range cETLus Certificate - English (pdf)
TUVR Q100 Shock Test Certificate - English (pdf)
Q300 and Q450 IP68 Certificate - English (pdf)
