Rotork
IQ3M Pro - Modulating
IQ3 Pro

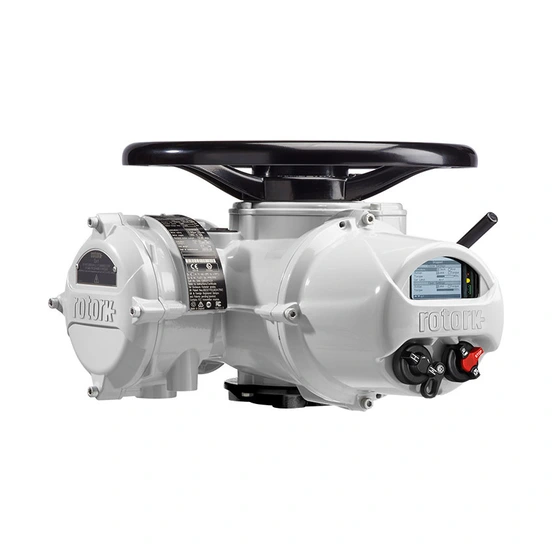

IQ3M Pro modulating duty 3-phase intelligent electric actuator with solid state reversing starter including an electronic motor ‘brake’ feature. Fast-response remote control circuits for rapid control. Benefitting from all the features of the IQ3 Pro electric actuator, including double-sealed enclosure to IP66/68 7m for 72 hours, non-intrusive controls and network compatibility.
Features
• IQ3M Pro are modulating duty versions of the IQ3 Pro actuator, benefitting from all the features and industry-leading reliability of the intelligent IQ3 range
• Designed for modulating duties of up to 1,200 starts per hour (S4 / Class C)
• IQ3M features a solid-state reversing starter in place of the normal IQ3 electro-mechanical contactors
• Solid state starter adds an electronic motor ‘brake’ feature for optimised positional control
• Watertight and explosionproof to international standards
• The IQ3 Pro range builds upon the industry-leading IQ3 with the addition of a ‘connected platform’, enabling the development of new features to drive digitalisation and future-proofing of electric actuation
• IQ3 Pro range can be configured and controlled via the Rotork App for smartphones which also allows data log extraction from the actuator. Data logs can be exported from the App to Rotork Insight 2 software or sent to Rotork’s secure cloud-based intelligent asset management (iAM) system for detailed analysis and preventative maintenance planning
• IQ3 Pro range
• is available with fully integrated ethernet, which is compatible with EtherNet/IP Modbus TCP and PROFINET protocols
• IQ3 Pro range are available with multiport functionality allowing control of multiport valves, allowing the input or output of product to be diverted to any one of 3 to 16 ports
• IQ3 Pro range
• is available with closed-loop control, incorporating the on-off/bang-bang control or PID control methodologies that are typically used in a PLC or discrete PID controller† ∑ Contact Rotork for latest product range availability
• Designed for modulating duties of up to 1,200 starts per hour (S4 / Class C)
• IQ3M features a solid-state reversing starter in place of the normal IQ3 electro-mechanical contactors
• Solid state starter adds an electronic motor ‘brake’ feature for optimised positional control
• Watertight and explosionproof to international standards
• The IQ3 Pro range builds upon the industry-leading IQ3 with the addition of a ‘connected platform’, enabling the development of new features to drive digitalisation and future-proofing of electric actuation
• IQ3 Pro range can be configured and controlled via the Rotork App for smartphones which also allows data log extraction from the actuator. Data logs can be exported from the App to Rotork Insight 2 software or sent to Rotork’s secure cloud-based intelligent asset management (iAM) system for detailed analysis and preventative maintenance planning
• IQ3 Pro range
• is available with fully integrated ethernet, which is compatible with EtherNet/IP Modbus TCP and PROFINET protocols
• IQ3 Pro range are available with multiport functionality allowing control of multiport valves, allowing the input or output of product to be diverted to any one of 3 to 16 ports
• IQ3 Pro range
• is available with closed-loop control, incorporating the on-off/bang-bang control or PID control methodologies that are typically used in a PLC or discrete PID controller† ∑ Contact Rotork for latest product range availability
Features
Features
• IQ3M Pro are modulating duty versions of the IQ3 Pro actuator, benefitting from all the features and industry-leading reliability of the intelligent IQ3 range
• Designed for modulating duties of up to 1,200 starts per hour (S4 / Class C)
• IQ3M features a solid-state reversing starter in place of the normal IQ3 electro-mechanical contactors
• Solid state starter adds an electronic motor ‘brake’ feature for optimised positional control
• Watertight and explosionproof to international standards
• The IQ3 Pro range builds upon the industry-leading IQ3 with the addition of a ‘connected platform’, enabling the development of new features to drive digitalisation and future-proofing of electric actuation
• IQ3 Pro range can be configured and controlled via the Rotork App for smartphones which also allows data log extraction from the actuator. Data logs can be exported from the App to Rotork Insight 2 software or sent to Rotork’s secure cloud-based intelligent asset management (iAM) system for detailed analysis and preventative maintenance planning
• IQ3 Pro range
• is available with fully integrated ethernet, which is compatible with EtherNet/IP Modbus TCP and PROFINET protocols
• IQ3 Pro range are available with multiport functionality allowing control of multiport valves, allowing the input or output of product to be diverted to any one of 3 to 16 ports
• IQ3 Pro range
• is available with closed-loop control, incorporating the on-off/bang-bang control or PID control methodologies that are typically used in a PLC or discrete PID controller† ∑ Contact Rotork for latest product range availability
• Designed for modulating duties of up to 1,200 starts per hour (S4 / Class C)
• IQ3M features a solid-state reversing starter in place of the normal IQ3 electro-mechanical contactors
• Solid state starter adds an electronic motor ‘brake’ feature for optimised positional control
• Watertight and explosionproof to international standards
• The IQ3 Pro range builds upon the industry-leading IQ3 with the addition of a ‘connected platform’, enabling the development of new features to drive digitalisation and future-proofing of electric actuation
• IQ3 Pro range can be configured and controlled via the Rotork App for smartphones which also allows data log extraction from the actuator. Data logs can be exported from the App to Rotork Insight 2 software or sent to Rotork’s secure cloud-based intelligent asset management (iAM) system for detailed analysis and preventative maintenance planning
• IQ3 Pro range
• is available with fully integrated ethernet, which is compatible with EtherNet/IP Modbus TCP and PROFINET protocols
• IQ3 Pro range are available with multiport functionality allowing control of multiport valves, allowing the input or output of product to be diverted to any one of 3 to 16 ports
• IQ3 Pro range
• is available with closed-loop control, incorporating the on-off/bang-bang control or PID control methodologies that are typically used in a PLC or discrete PID controller† ∑ Contact Rotork for latest product range availability
