Rotork
IQT3F Pro - Full-Turn
IQ3 Pro

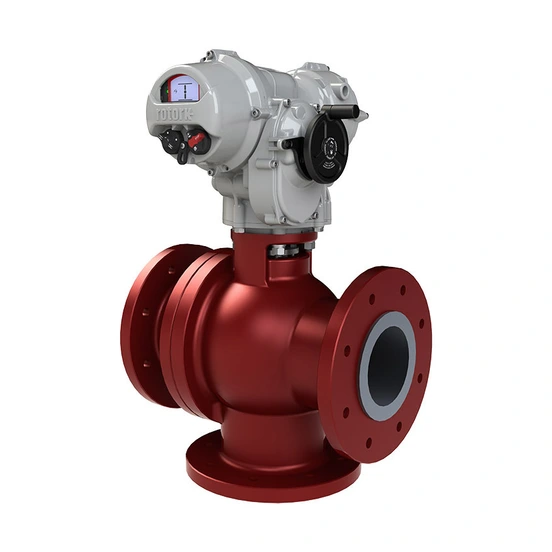

IQT3F Pro full-turn actuator provides extended output rotation for part-turn valves requiring more than 90 degree operation such as 180º and 270º diverter valves. Featuring low output speed for positional accuracy, the IQT3F provides a reliable solution with the same general specification as the IQT3 range.
Features
• IQT3F Pro are full-turn versions of the IQT3 Pro actuator, benefitting from design features and industry-leading reliability of the intelligent IQ3 Pro range

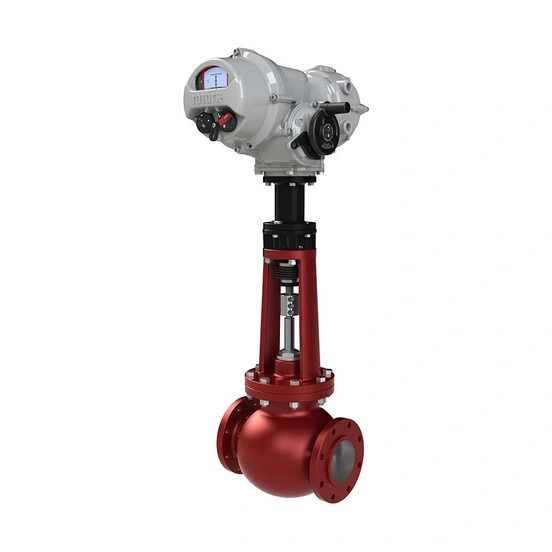

• Designed specifically for choke and control valve actuation and suitable for operation in hazardous environments
• IQT3F provides the reliable, accurate and high resolution movement required in arduous applications associated with oil and gas field and general process control
• IQTF-A variants are optimised for rising stem applications
• IQTF-B variants are optimised for non-rising stem applications
• IQTF-L variants are optimised for direct drive linear applications
• Independent speed settings for clockwise and anti-clockwise rotation
• Low output speeds for increased positional accuracy
• Optional high-speed build available for sizes 50, 100 and 125
• Closed-loop control available
• Electrical supply options: 1-phase, 3-phase and Direct Current (DC)
• Watertight and explosionproof to international standards
• The IQT3 Pro range builds upon the industry-leading IQT3 with the addition of a ‘connected platform’, enabling the development of new features to drive digitalisation and future-proofing of electric actuation
• IQT3 Pro range can be configured and controlled via the Rotork App for smartphones which also allows data log extraction from the actuator. Data logs can be exported from the App to Rotork Insight 2 software or sent to Rotork’s secure cloud-based intelligent asset management (iAM) system for detailed analysis and preventative maintenance planning
• IQT3 Pro range
• is available with fully integrated ethernet, which is compatible with EtherNet/IP Modbus TCP and PROFINET protocols

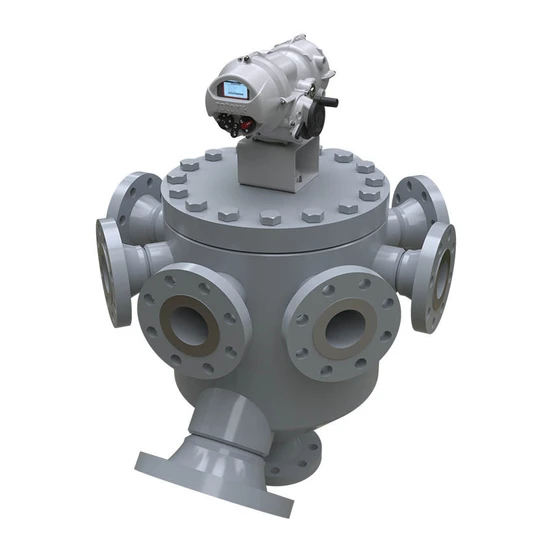

• IQT3F Pro range are available with multiport functionality allowing control of multiport valves, allowing the input or output of product to be diverted to any one of 3 to 16 ports
• IQT3 Pro range
• is available with closed-loop control, incorporating the on-off/bang-bang control or PID control methodologies that are typically used in a PLC or discrete PID controller
• IQT3 Pro range actuators feature independent open/close speed control, allowing customers to configure the actuators’ speed settings for clockwise and anti-clockwise rotation† ∑ Contact Rotork for latest product range availability
