Fairchild
M1000
FAIRCHILD - Pressure Regulators

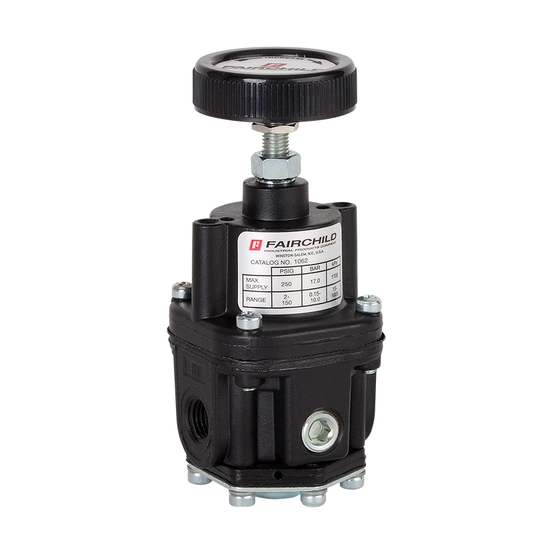

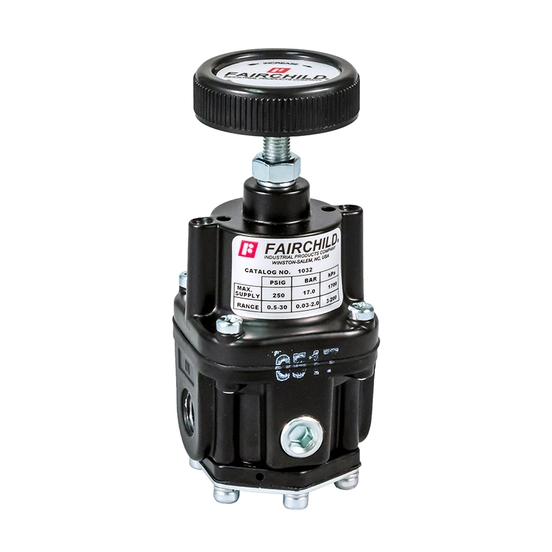

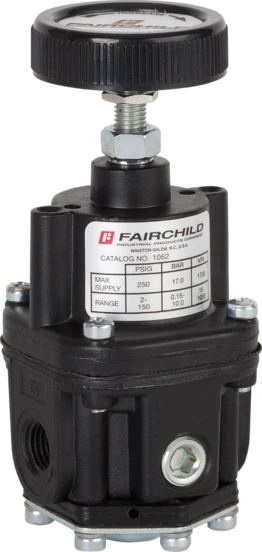

Rotork Fairchild Model 1000 is a no bleed precision pressure regulator designed for use in systems requiring both precision control and high forward flow and exhaust capacity. The sensitive valve system of this high quality unit makes it virtually immune to supply pressure variations.
Features
• A great choice for versatile control applications, including loading of control valve and calendar roll actuators, operation of clutch and braking devices, and winding operations
• Flow capacity of up to 50 SCFM, 85 m3/hr
• Control sensitivity of less than 0.5" water column
• Four output pressure ranges from 0.5-10 psi, 0.03-0.7 BAR, 3-70 kPa up to 2-150 psi, 0.14-10 BAR, 14-1000 kPa
• No-bleed design minimizes consumption of air or inert gas
• Control chamber isolates the control diaphragm which eliminates hunting and buzzing
• Venturi-type aspirator tube compensates downstream pressure droop under flow conditions
• Separate pilot valve eliminates unbalanced closing forces in inner valve assembly
• Sensitive pilot valve action - large correcting effect maintains constant setpoint immune to supply pressure variations
• Compact size - excellent for applications where space is limited
