Fairchild
M10BP
FAIRCHILD - Pressure Regulators

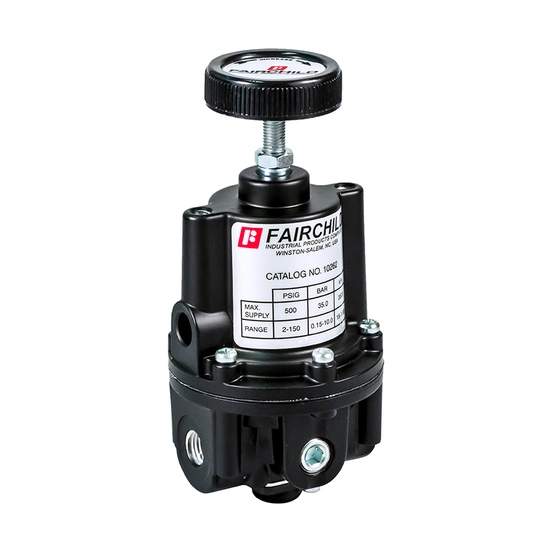

The Rotork Fairchild Model 10BP Regulator is an excellent choice for applications which require high precision control of back pressures and relief pressures. The Model 10BP uses a force balance principle to open the relief valve and vent the system pressure when the set point is exceeded.
Features
• Control sensitivity of 1/8" water column - highest accuracy pressure regulator available
• High flow capacity provides a highly responsive unit for control or relieving applications
• 40 SCFM, 68m3/hr flow capacity
• Nine setpoint pressure ranges from 0-2 psi, 0-0.15 BAR, 0-15 kPa, up to 5-400 psi, 0.3-28 BAR, 35-2800 kPa
• Separate control chamber isolates the diaphragm from the main flow and eliminates hunting and buzzing
• Aspirator tube compensates for any pressure droop under flow conditions
• Unit construction allows you to service the model 10BP without removing it from the line
• Mounting bracket available
• Easy installation and maintenance
