FAIRCHILD - Pressure Regulators

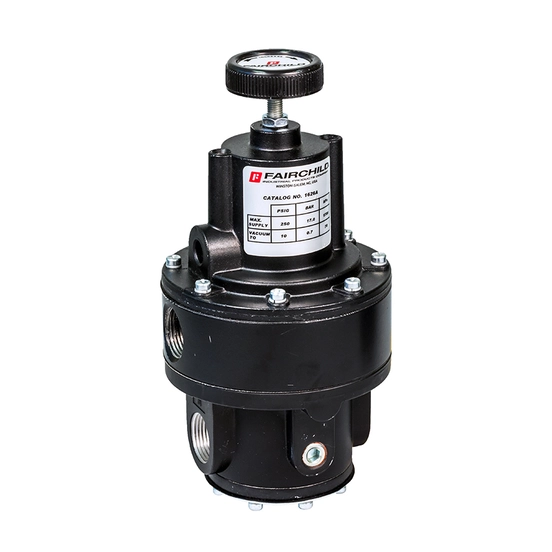

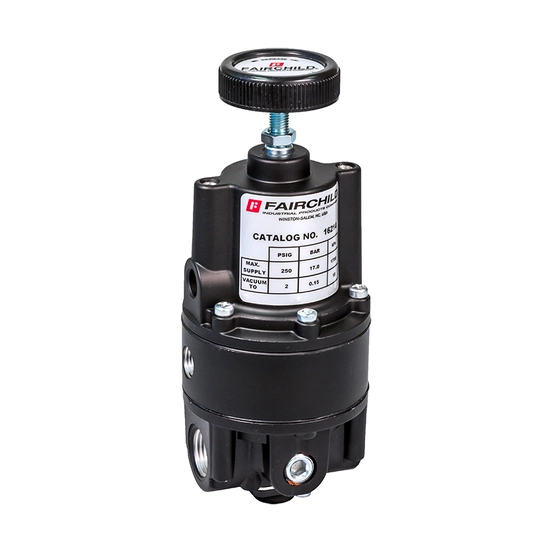

Rotork Fairchild Model 16 Vacuum Regulator is designed for systems that require system pressure control above and below atmospheric pressure. Stability of regulated vacuum or pressure is maintained under varying flow conditions through the use of an aspirator tube which adjusts the inner valve in accordance with the flow velocity.
Features
• Handles positive pressure into vacuum - highly accurate control of low pressures or light vacuum
• Control sensitivity of 1/2" water column allows use high in precision applications
• Balanced supply valve to deliver consistent and reliable precision accuracy to maintain your desired set point regardless of supply pressure/vacuum changes or conditions
• Up to 40 SCFM, 65 m3/hr positive flow capacity
• Five output pressure ranges from Vacuum-2 psi, Vacuum-0.15 BAR, Vacuum-15 kPa, up to Vacuum-150 psi, Vacuum-10 BAR, Vacuum-1000 kPa
• Aspirator tube compensates downstream pressure droop under flow conditions
• Separate control chamber isolates the diaphragm from the main flow and eliminates any hunting and buzzing
• Unit construction allows you service the Model 16 without removing it from the line
• Mounting bracket available
• Easy to install in assembly or in the field
