Fairchild
M1600A
FAIRCHILD - Pressure Regulators

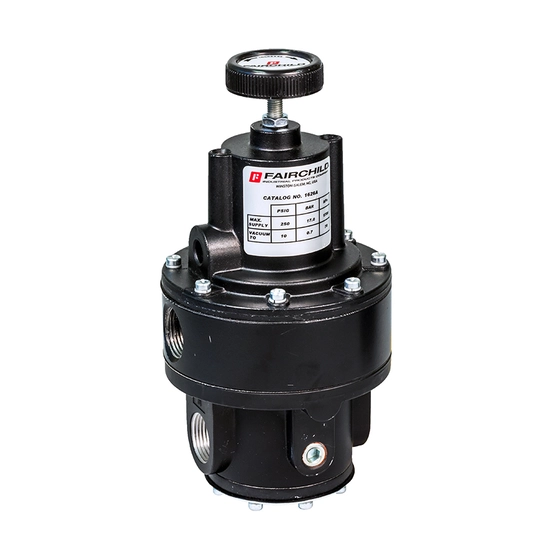

Rotork Fairchild Model 1600 Vacuum Regulator is designed for systems that require high flow and system pressure control above and below atmospheric pressure. Stability of regulated vacuum or pressure is maintained under varying flow conditions through the use of an aspirator tube which adjusts the inner valve in accordance with the flow velocity.
Features
• The single unit controls vacuum and positive pressure - highly accurate control of low pressures or light vacuum
• High flow capacity - responsive and repeatable operation
• Up to 28 SCFM, 48 m3/hr vacuum flow capacity
• Control sensitivity of 1" water column allows use in precision applications
• Three output pressure ranges from Vacuum-10 psi, Vacuum-0.7 BAR, Vacuum-70 kPa, up to Vacuum-150 psi, Vacuum-10 BAR, Vacuum-1000 kPa
• Large supply and exhaust valves provide high forward and exhaust flows
• Soft supply and exhaust valve minimizes air consumption
• Balanced supply valve to deliver consistent and reliable precision accuracy to maintain your desired set point regardless of supply pressure/vacuum changes or conditions
• Aspirator tube compensates downstream pressure droop under flow conditions
• Separate control chamber isolates the diaphragm from the main flow and eliminates hunting and buzzing
• Unit construction allows you to service the Model 1600 without removing it from the line
