Fairchild
M30BP
FAIRCHILD - Pressure Regulators

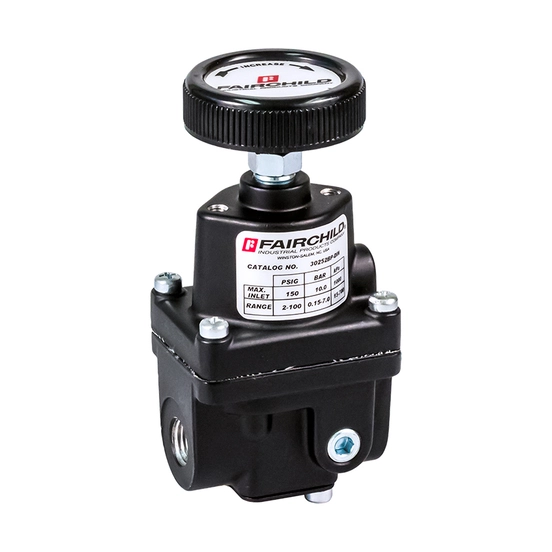

Model 30BP is a compact precision pressure regulator designed for applications that require high performance and accurate process control back pressures and relief pressures, but where space may be limited or you wish to reduce the overall size of your panel or equipment.
Features
• Its combination of high capacity and compact size make the Model 30BP an excellent choice for a wide range of precision applications including: Precise Control of Paper Machinery Felt Guides, Supply of a Precise Repeatable Signal to a Pneumatic Clutch, or Control of Cylinder Pressure
• Five set point pressure ranges from 0-2 psi, 0-0.15 BAR, 0-15 kPa up to 2-100 psi, 0.1-7 BAR, 15-700 kPa
• Control sensitivity of 1/4" water column - excellent choice for high precision process applications
• Balanced relief valve to deliver consistent and reliable precision accuracy to maintain your desired set point regardless of system pressure changes or conditions
• Compact size - fits in tight spaces or allows downsizing of panel or equipment
• Flow capacity of up to 40 SCFM - responsive performance for precision back pressure or relief applications
• Separate control chamber eliminates any hunting and buzzing
• Aspirator tube isolates the diaphragm from the main flow and compensates for any pressure drop under flow conditions
