Fairchild

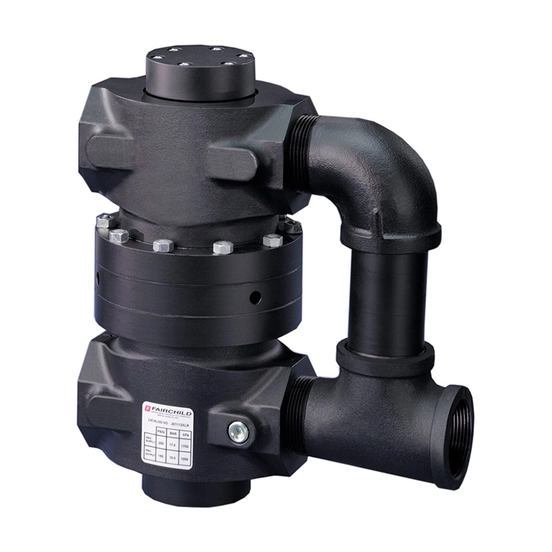

200XLR
FAIRCHILD - Volume Boosters
Based on the Model 200 valve body, the Model 200XLR Volume Booster couples two identical units to obtain ultra high flow capacity in both forward and exhaust modes. As a pilot operated regulator design, the M200 is designed for high supply pressures and features ultra high flow capacity.
Features
Supply pressure up to 250 psig, [17.0 bar], (1700 kPa)
Forward and exhaust flow capacity of 1,800 SCFM (3,058 m3/hr)
Cv factor of approximately 18, in both forward and exhaust flow modes
Control sensitivity to 1” water column
Increased sensitivity (“L”) option
Separate control chamber
Optional adjustable by-pass needle valve (includes bubble tight exhaust valve)
Ultra fast responsive operation
Allows use in precision applications
Permits more precision control at low setpoints
Isolates the diaphragm from the main flow to eliminate hunting and buzzing
Allows tuning for optimum dynamic response and cycle free operation with valve positioners
