Schischek
ExRun
Run

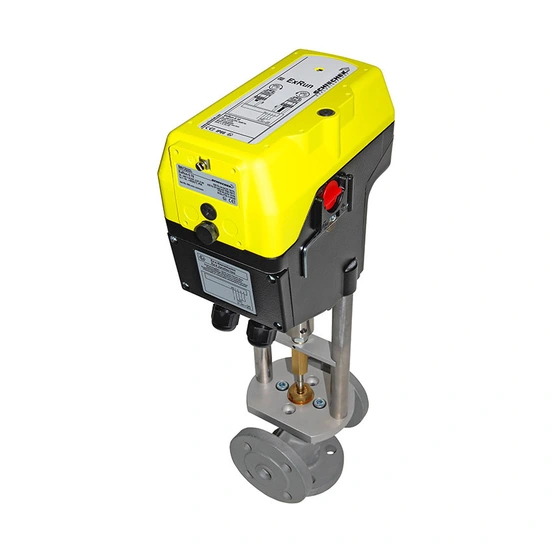

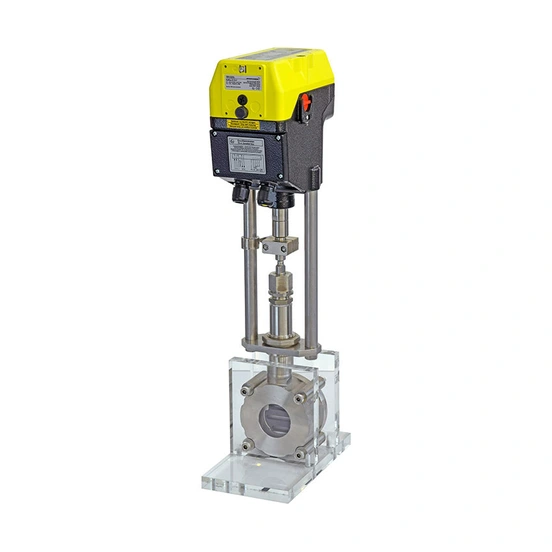

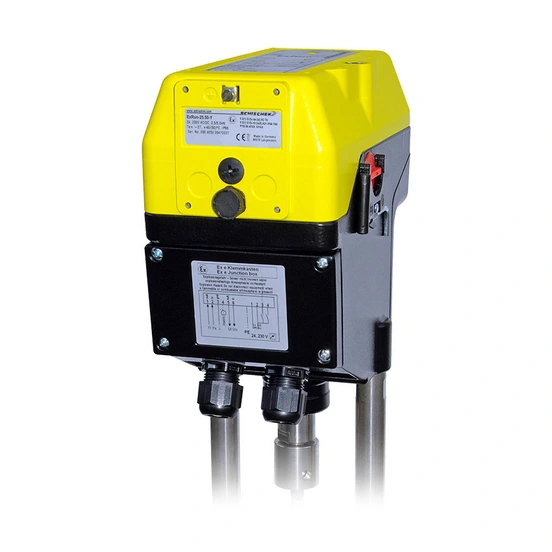

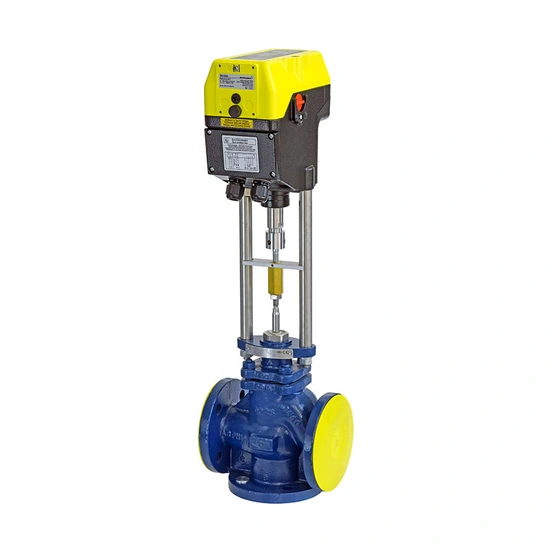

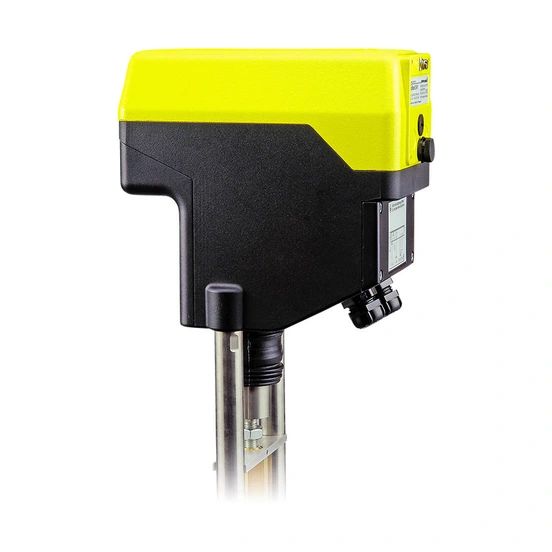

Schischek ExRun explosionproof linear actuators for use in Zone 1, 2, 21, 22. Gas + Dust certified. Compact and robust with integrated terminal box, IP66 aluminium housing and optional offshore/marine coating. A cost-effective solution for automation of 2- and 3-way valves with 3-position on/off or modulating mode.
Features
• Linear output drive
• Variable speed drive (control mechanism drive) applications with 3-pos. on/off or modulating mode (dependent on type) in hazardous locations Zone 1, 2, 21, 22
• Explosionproof to international standards in Zone 1, 2, 21, 22
• UL and CSA certified variants available
• Small dimension, compact, easy installation, highest protection classes, cost-effective
• 24 - 240 VAC/VDC universal power supply
• Ingress protection IP66
• Robust aluminium housing
• Integrated terminal box
• Integrated heater for low temperatures
• Up to 5 different running times adjustable on-site
• Emergency manual override
• Optional offshore/marine coating
• Variable speed drive (control mechanism drive) applications with 3-pos. on/off or modulating mode (dependent on type) in hazardous locations Zone 1, 2, 21, 22
• Explosionproof to international standards in Zone 1, 2, 21, 22
• UL and CSA certified variants available
• Small dimension, compact, easy installation, highest protection classes, cost-effective
• 24 - 240 VAC/VDC universal power supply
• Ingress protection IP66
• Robust aluminium housing
• Integrated terminal box
• Integrated heater for low temperatures
• Up to 5 different running times adjustable on-site
• Emergency manual override
• Optional offshore/marine coating
Features
Features
• Linear output drive
• Variable speed drive (control mechanism drive) applications with 3-pos. on/off or modulating mode (dependent on type) in hazardous locations Zone 1, 2, 21, 22
• Explosionproof to international standards in Zone 1, 2, 21, 22
• UL and CSA certified variants available
• Small dimension, compact, easy installation, highest protection classes, cost-effective
• 24 - 240 VAC/VDC universal power supply
• Ingress protection IP66
• Robust aluminium housing
• Integrated terminal box
• Integrated heater for low temperatures
• Up to 5 different running times adjustable on-site
• Emergency manual override
• Optional offshore/marine coating
• Variable speed drive (control mechanism drive) applications with 3-pos. on/off or modulating mode (dependent on type) in hazardous locations Zone 1, 2, 21, 22
• Explosionproof to international standards in Zone 1, 2, 21, 22
• UL and CSA certified variants available
• Small dimension, compact, easy installation, highest protection classes, cost-effective
• 24 - 240 VAC/VDC universal power supply
• Ingress protection IP66
• Robust aluminium housing
• Integrated terminal box
• Integrated heater for low temperatures
• Up to 5 different running times adjustable on-site
• Emergency manual override
• Optional offshore/marine coating
