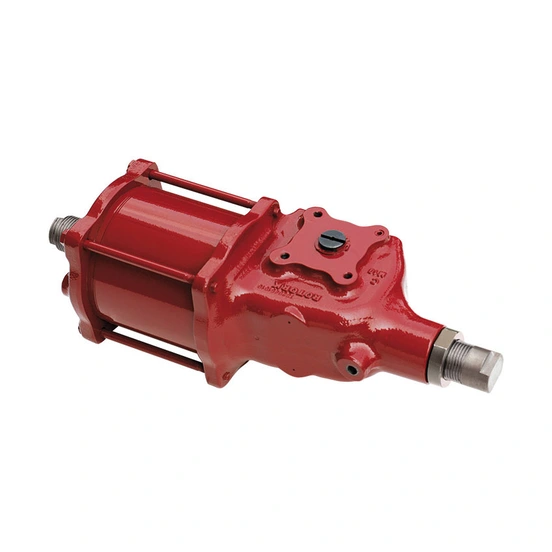

CP Range pneumatic scotch yoke actuators

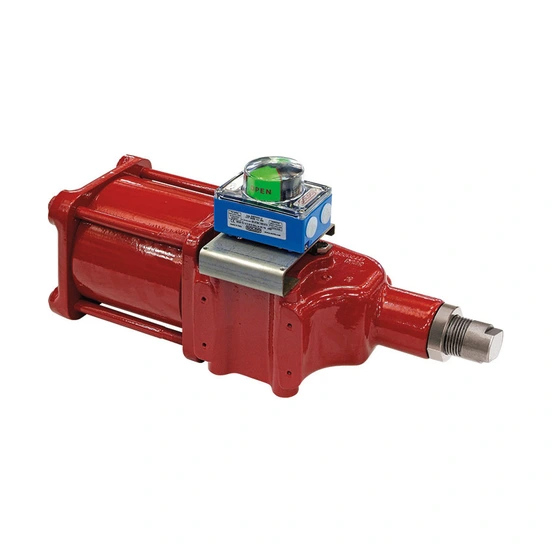

CP Range pneumatic scotch yoke actuators

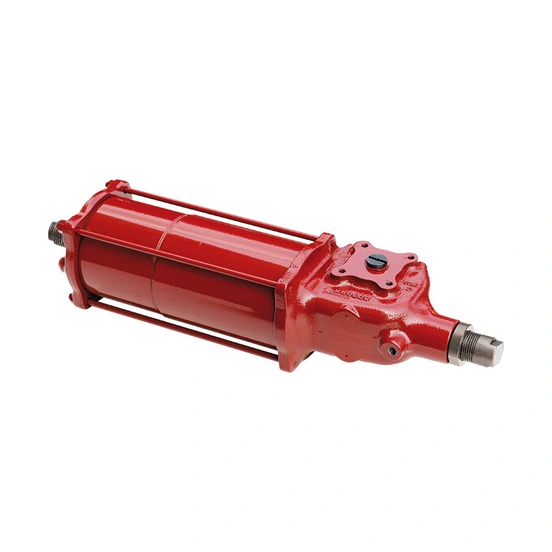

CP Range pneumatic scotch yoke actuators

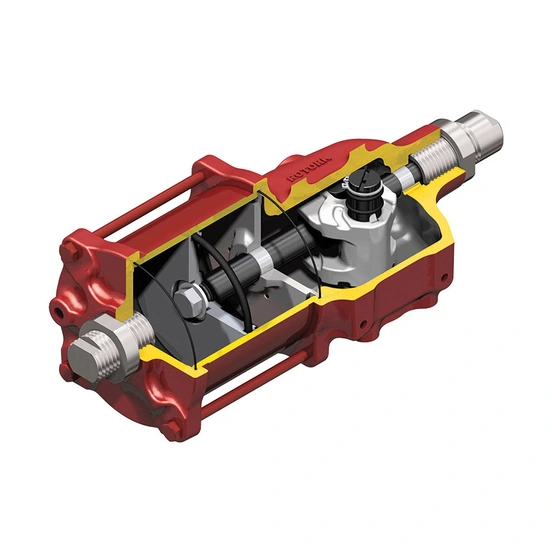

CP Range pneumatic scotch yoke actuators - section

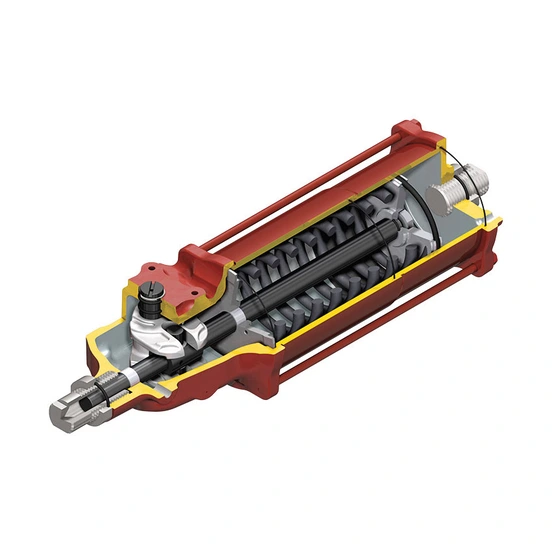

CP Range pneumatic scotch yoke actuators - section

Rotork

CP

CP

CP range are versatile, modular, scotch yoke actuators available in double-acting and spring-return configurations. The compact and efficient design yields surprisingly high torques even at low pressures. Using design concepts from Rotork’s GP and LP actuators, the CP range brings heavy-duty actuator qualities to small, quarter-turn applications.

Contact Us

Features
• Pneumatic scotch yoke actuators (symmetric yoke)
• Double-acting and spring-return configurations
• Fail close/fail open
• For on/off and modulating
• Ductile cast iron actuator body available in four sizes
• Corrosion resistant cylinders in electroless nickel-plated carbon steel
• Certified to IP 66M/67M
• Certified to ATEX 2014/34/EU
• Certified in accordance with PED 2014/68/EU
• Certified suitable for use at SIL3 as a single device in accordance with IEC 61508
• Optional emergency manual override suitable to operate the actuator in the event of fluid supply failure
Features
Features
• Pneumatic scotch yoke actuators (symmetric yoke)
• Double-acting and spring-return configurations
• Fail close/fail open
• For on/off and modulating
• Ductile cast iron actuator body available in four sizes
• Corrosion resistant cylinders in electroless nickel-plated carbon steel
• Certified to IP 66M/67M
• Certified to ATEX 2014/34/EU
• Certified in accordance with PED 2014/68/EU
• Certified suitable for use at SIL3 as a single device in accordance with IEC 61508
• Optional emergency manual override suitable to operate the actuator in the event of fluid supply failure
Downloads
Product Brochures
PUB013-001 - CP Sales Brochure - English (pdf)
Manuals
PUB013-015 - CP Range Installation and Maintenance Manual - English (pdf)
PUB013-003 - CP Range Installation and Maintenance Manual (Legacy - Replaced by PUB013-015) - English (pdf)
Drawings/Dimensions Data
CP SIL Functional Safety Data (pdf)
CP/D Range General Dimension Data - Metric (pdf)
CP/S Range General Dimension Data - Metric (pdf)
Technical Information
PUB013-002 - CP Range Torque Data - English (pdf)
PUB013-005 - CP/S Range General Dimension Data - Metric - English (pdf)
PUB013-004 - CP/D Range General Dimension Data - Metric - English (pdf)
Certificates
PUB010-048 - RFS ATEX Certificate - Suzhou - English (pdf)
PUB010-037 - RFS ATEX Certificate - Rochester - English (pdf)
PUB010-034 - RFS ATEX Certificate - Chennai - English (pdf)
PUB013-018 - CP-S CP-D SIL Functional Safety Data - Suzhou - English (pdf)
PUB010-010 - RFS PED Compliance Certificate Mod. H - Lucca - English (pdf)
PUB010-045 - RFS PED compliance certificate MOD H1 – Lucca - English (pdf)
PUB013-016 - CP-S SIL Functional Safety Data - Chennai (Withdrawn) - English (pdf)
PUB013-013 - CP-D SIL Functional Safety Data - Rochester (Withdrawn) - English (pdf)
PUB010-033 - Rotork Fluid Systems SRL ISO 14001 Certificate - English (pdf)
PUB013-006 - CP Range IP66 and IP67 Conformity Certificate - English (pdf)
PUB013-020 - CP-D SIL Functional Safety Data - Thirumazhisai (Withdrawn) - English (pdf)
PUB013-019 - CP-S SIL Functional Safety Data - Thirumazhisai - English (pdf)
PUB013-011 - CP-D SIL Functional Safety Data - Lucca (Withdrawn) - English (pdf)
PUB013-009 - CP Range Certificate of Design Assessment (Withdrawn) - English (pdf)
PUB013-010 - CP-S SIL Functional Safety Data - Lucca - English (pdf)
PUB013-017 - CP-D SIL Functional Safety Data - Chennai (Withdrawn) - English (pdf)
PUB013-012 - CP-S SIL Functional Safety Data - Rochester - English (pdf)
PUB013-021 - CP Range - ABS Type Certification - English (pdf)
