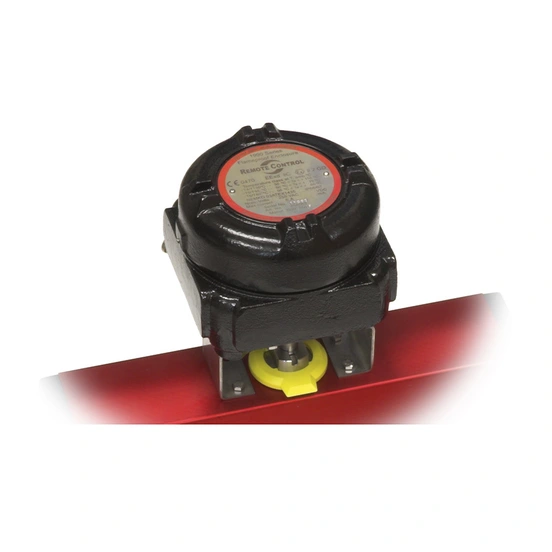

RC1990 explosionproof switch box for open and closed position with connection according to VDI/VDE 3845, NAMUR on the top side of the actuator. IP66 / IP67 enclosure with housing and cover in epoxy-coated cast iron and screwed lid for ease of access.

Contact Us

Features
• Housing in cast iron, epoxy coated.
• Shaft, nameplate and screws in stainless steel
• Mounting details according to international standard VDI/VDE 3845 NAMUR
• Ambient temperatures: Ex d -50 to +110 °C, Ex ib -55 to +80 °C
• Enclosure IP66 / IP67
• Screwed lid for easy access
• Individually adjustable cams for switch operation
• 12-way terminal strip with screw terminals
• Mechanical switches as standard

Options:
• Proximity sensors
• Potentiometer
• Up to 4x cable entries for RC1990 used as switch box
• Up to 7x cable entries for RC1990 used as junction box only
Features
Features
• Housing in cast iron, epoxy coated.
• Shaft, nameplate and screws in stainless steel
• Mounting details according to international standard VDI/VDE 3845 NAMUR
• Ambient temperatures: Ex d -50 to +110 °C, Ex ib -55 to +80 °C
• Enclosure IP66 / IP67
• Screwed lid for easy access
• Individually adjustable cams for switch operation
• 12-way terminal strip with screw terminals
• Mechanical switches as standard

Options:
• Proximity sensors
• Potentiometer
• Up to 4x cable entries for RC1990 used as switch box
• Up to 7x cable entries for RC1990 used as junction box only
Downloads
Technical Information
PUB145-001 - RC1990 Explosion Proof Switch Box - Data Sheet - English (pdf)
PUB145-002 - RC1990 Explosion Proof Switch Box - installation and Maintenance Instructions - English (pdf)
