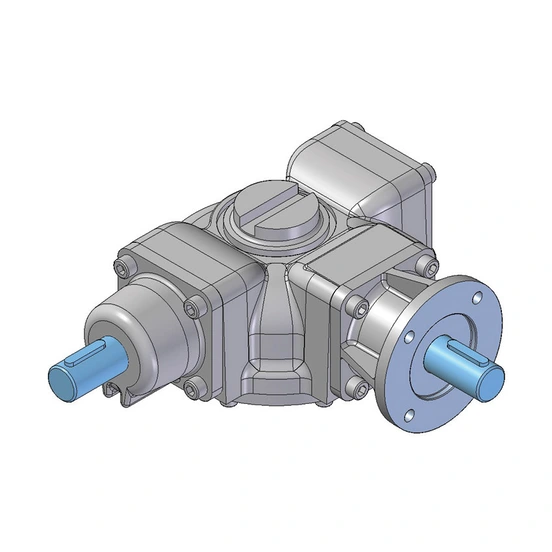

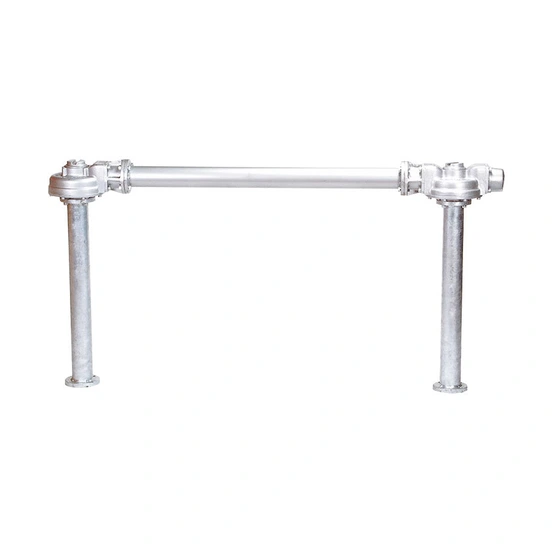

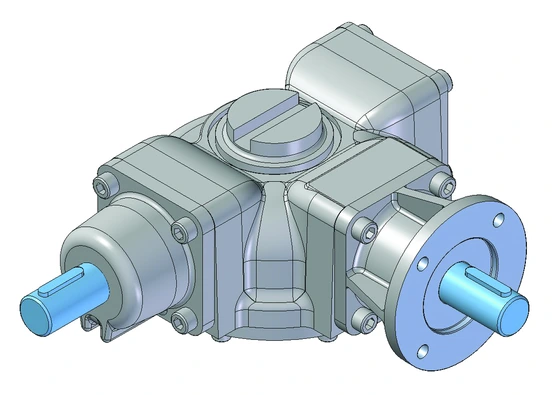

Complete range of multi-turn bevel gearboxes with two shafts for use with dual stem sluice gates and penstocks.
Features
• 13 sizes
• Ratios from 1:1 to 120:1
• Ductile iron baseplates
• Comprehensive gear ratios combined with a selection of spur input reducers
• Pinions mounted on ball bearings
• IP67
• Options for all types of environment , including IP68
• Optional position indications
• Optional input shafts available at 90º & 180º to each other
• 90° & 180° DSB available for IB4 to IB9
• 180° DSB available for IB10 to IB14
• Ratios from 1:1 to 120:1
• Ductile iron baseplates
• Comprehensive gear ratios combined with a selection of spur input reducers
• Pinions mounted on ball bearings
• IP67
• Options for all types of environment , including IP68
• Optional position indications
• Optional input shafts available at 90º & 180º to each other
• 90° & 180° DSB available for IB4 to IB9
• 180° DSB available for IB10 to IB14
